Introduction

VGA cables have long been an industry standard for video connections. With the advancement of new technologies, it is critical to understand the numerous types of VGA cables that are still in use today.

Despite the proliferation of digital interfaces such as HDMI and DisplayPort, VGA remains useful in some applications, particularly in older computers and unique situations.

That’s why in this article, I’ll guide you about different types of vga cables, their use and working.

What is a VGA Cable?

VGA cables are commonly used to connect computers to monitors, projectors, and other display devices. The technology was innovative when it was first introduced, giving a standard mechanism for sending video information from a computer to a display.

Although newer digital standards such as HDMI, DisplayPort, and DVI have mostly superseded VGA in many applications, the cable’s simplicity and widespread adoption ensure its continued use.

A VGA cable normally has a 15-pin connector, commonly known as a D-sub connector, on each end. These connectors are arranged in three rows of five pins, with each performing a specific purpose in transferring the video signal.

Benefits of VGA Cables

• Widespread compatibility:
  VGA has been a standard for many years, therefore it is largely compatible with older monitors, projectors, and other displays.
• Cost-Effective:
  VGA connections and devices that support VGA are typically less expensive than newer digital interfaces. This makes them a cost-effective solution for simple video connectivity.
• Analogue Signal Transmission:
  VGA cables deliver analog signals, which might be useful for older devices that cannot handle digital signals.
• Simple Connection:
  VGA cables are simple to connect, with a quick plug-and-play configuration. This simplicity makes them user-friendly and simple to use, requiring no additional software or drivers.
• Long Cable Runs:
  VGA cables can be utilized over great distances with minimal signal deterioration. This makes them suited for use in situations where the source device and display are far apart.
• Robust physical connectors:
  VGA connectors are strong and robust, lowering the possibility of accidental disconnection and assuring a steady connection.
• Backward Compatibility:
  Many VGA cables and adapters are compatible with modern digital technology, allowing older devices to be used more effectively.

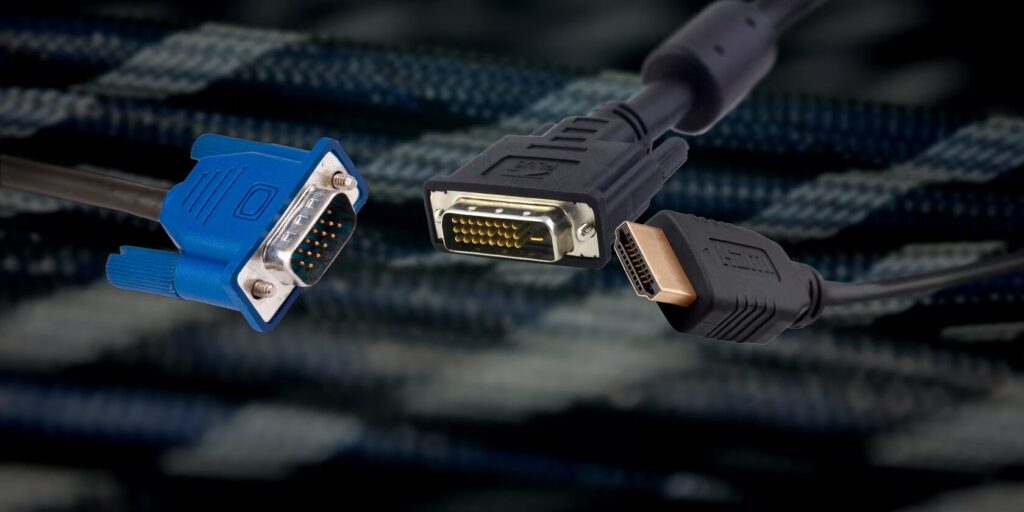

Types of VGA Cables

1- VGA to HDMI Cable

As digital displays become more widespread, VGA-to-HDMI cables bridge the gap between older analog systems and current digital screens. These cables convert VGA signals into HDMI, allowing older PCs to connect to newer displays and televisions.

It allows for the use of older equipment with current screens and increases the usability of legacy devices. It necessitates built-in signal conversion, which can raise the cost and complexity.

2- VGA to DIVI Cable

VGA-to-DVI connections, like VGA-to-HDMI, convert analog VGA signals to digital DVI format. These cables are often used in professional and commercial settings to connect older PCs to digital monitors.

They bridge the gap between analog and digital systems and are frequently found in offices and educational organizations.

They cost more than ordinary VGA cables due to the built-in conversion technology.

3- VGA to VGA Cable

A VGA to VGA cable connects two devices that have VGA (Video Graphics Array) connections. This connection is commonly used to link a computer to a display or projector, allowing for the transmission of analog video signals.

4- VGA to Splitter Cable

VGA splitter cables divide a single VGA output into numerous outputs, allowing multiple monitors to be connected to the same source. These cables are excellent for presentations, training, and other situations requiring several monitors.

They make it easier to use numerous displays from a single source while also saving money on additional video cards or outputs.

5- VGA Extension cable

VGA extension cables are used to expand the distance between a computer and its monitor. These cables are especially useful in circumstances where equipment must be spaced more apart than normal cables allow.

They allow for greater device positioning flexibility and are a simple option for expanding cable length without the use of additional hardware.

How VGA Cable Works?

VGA connections connect analogue video signals from a computer’s graphics card to a display device. The transmission’s analog nature makes it prone to interference and signal loss over greater distances. However, for most common usage within a few meters, VGA connections provide a dependable manner of showing video output.

Unlike digital signals, which convey binary data (ones and zeros), analog signals change continually to indicate different colors and brightness levels.

The cable transmits distinct signals for the image’s red, green, and blue components, which are merged by the display to create the final image.

Horizontal and vertical synchronization signals ensure that the image is properly aligned on the display device, eliminating screen tearing and misalignment.

See other computer video cable types

Conclusion

VGA cables have played an important role in the advancement of video technology, serving as a dependable means of connecting computers to displays for more than 30 years. While digital alternatives have mostly replaced VGA in many applications, VGA cables’ long-term compatibility, affordability, and ease of use maintain their continued significance.

Understanding the structure, applications, and types of VGA cables allows you to make more informed decisions about your visual connectivity requirements, whether you are preserving legacy systems or exploring new technologies.
