Single Mode vs Multimode Fiber Cable: What’s the Difference? Leave a comment
Single Mode and multimode fiber optic cables are two major competitors in this market, each with unique qualities and advantages. Understanding Single Mode vs Multimode Fiber Optic Cable is critical for making sound decisions when designing or updating your network.
Singlemode fiber optic cables provide unrivaled performance over extended distances with their thin cores and capacity to transfer light along a single path.
Multimode fiber optic cables, which have larger cores and carry many light channels, are designed for shorter-distance transfers within buildings or campuses, requiring high capacity and cost-effectiveness.
In this detailed guide, We’ll cover the distinctions between single mode and multimode fiber optic cables, including transmission distance, bandwidth capacity, and cost-effectiveness.
Table of Contents
What are Fiber Optic cables?
Fiber optic cables are thin, flexible strands of glass or plastic that send data using light signals. They provide high-speed data transmission over vast distances while minimizing signal loss. Fiber optic cables are commonly used in telecommunications, networking, and internet infrastructure. They are faster, more reliable, and have a wider bandwidth than standard copper lines.

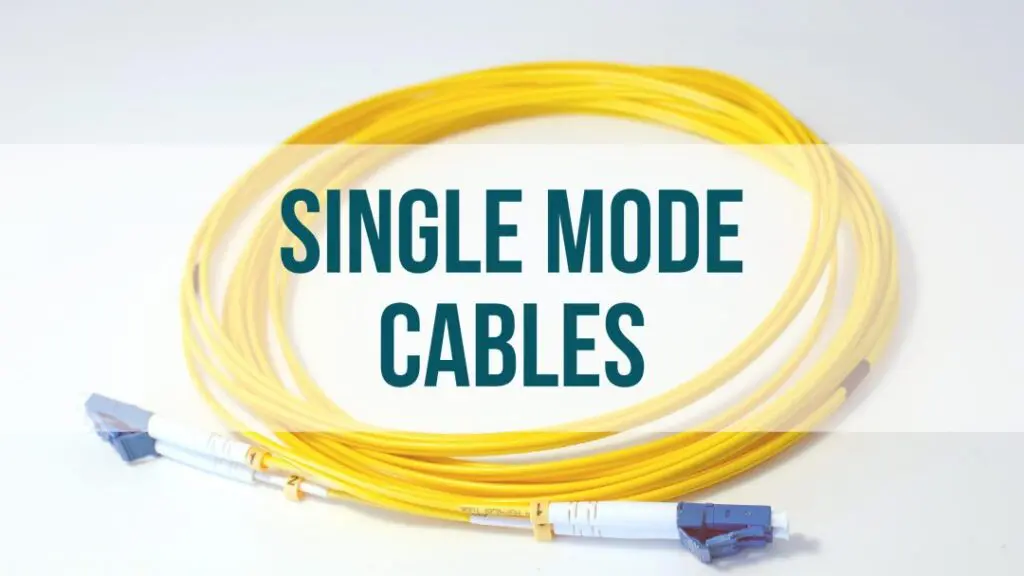

What is a Single Mode Fiber Optic Cable?
Single-mode fiber (SMF) is intended to carry only one mode of light propagation, allowing light to move along a single path. Its small core diameter, typically approximately 9 microns, allows light to travel with little dispersion. This feature makes SMF perfect for long-distance transmissions since it reduces signal loss and distortion over long distances.
Single Mode Fiber Optic Cable Types
- OS1 (Optical Single Mode 1): This single-mode fiber optic cable is intended for indoor use and has a standard core diameter of 9 microns. It is best suited for long-distance transmissions and is widely employed in telecommunications networks and backbone deployments.
- OS2 (Optical Single Mode 2): Like OS1, OS2 fiber has a 9-micron core diameter, but it is designed for outdoor and long-haul applications. It provides minimal attenuation and is appropriate for high-speed data transmission over lengthy distances, making it excellent for underwater cables and long-distance telecommunications networks.

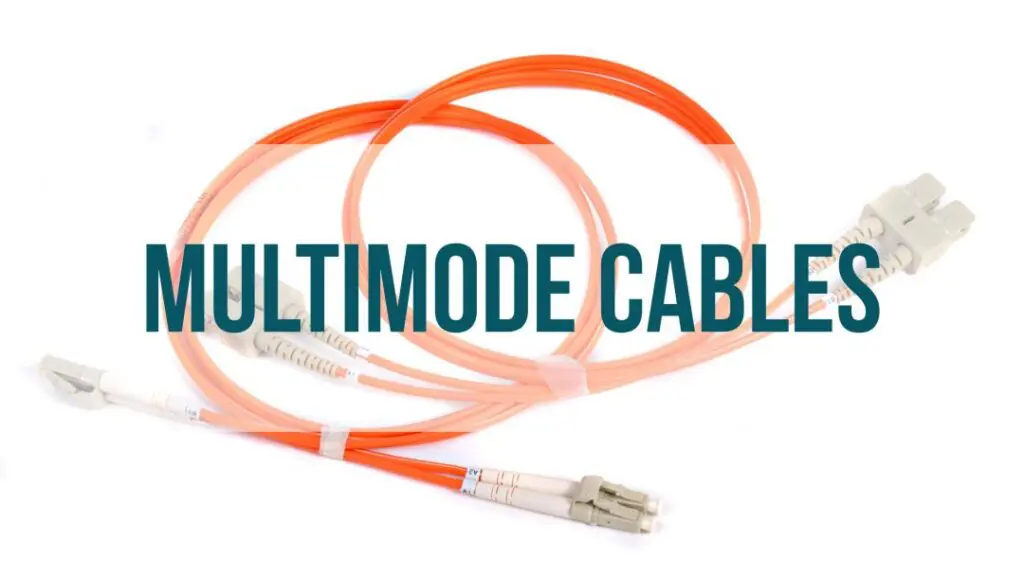

What is a Multimode Fiber Optic Cable?
In contrast, multimode fiber (MMF) is designed to carry many modes of light simultaneously, resulting in a greater core diameter than single-mode fiber. Multimode fibers typically have two core diameters: 50 and 62.5 microns.
Their greater core size makes them ideal for shorter-distance transmissions within buildings or campuses where high bandwidth is required for applications such as data centers, LANs, and multimedia systems.
Multimode Fiber Optic Cable Types
- OM1 (Optical Multimode 1): Typically has a core diameter of 62.5 microns and is ideal for short-distance transmissions with minimal bandwidth requirements.
- OM2 (Optical Multimode 2): Similar to OM1, but with better performance, a 50-micron core diameter, and increased bandwidth capabilities for short-distance applications.
- OM3 (Optical Multimode 3): It is designed for higher-speed data transmission over short to medium distances. Its core diameter is 50 microns, making it ideal for 10 Gigabit Ethernet networks.
- OM4 (Optical Multimode 4): An improved version of OM3, OM4 fiber provides even more bandwidth and longer transmission lengths for applications that require higher data rates and reliability.
Key Differences Between Single Mode and Multimode Fiber Optic Cables
Single Mode vs Multimode Fiber Cable: Comparison
| Feature | Single Mode Fiber | Multimode Fiber |
| Core Diameter | Typically 9 microns | 50 or 62.5 microns |
| Transmission Distance | Long distances (up to hundreds of kilometers) | Short to medium distances (up to a few kilometers) |
| Bandwidth | High bandwidth | Lower bandwidth |
| Data Rates | Higher data rates over long distances | Lower data rates over shorter distances |
| Applications | Long-haul telecommunications, backbone networks | LANs, data centers, multimedia systems |
| Cost | Higher initial cost, lower long-term maintenance | Lower initial cost, higher long-term maintenance |
| Installation | More precise alignment and more complex installation procedures due to the smaller core size | Multimode fibers are easier to install with less precise alignment needed. |
| Cost of Transceivers | Higher | Lower |
| Modal Dispersion | Minimal (supports only one light mode) | Significant (supports multiple light modes) |
Conclusion
Finally, choosing between single mode and multimode fiber is important in constructing a reliable and effective network infrastructure.
Understanding the unique qualities and capabilities of each type of fiber optic cable is critical for customizing your network to match your organization’s needs.
Transmission distance, bandwidth requirements, and budget limits determine the decision between single mode and multimode fiber.
By carefully examining these aspects and considering the long-term repercussions for your network, you can make an informed decision consistent with your organization’s aims and objectives.
Collaborating with experienced fiber optics professionals can also provide significant insights and help during decision-making.
FAQs
What is the size of single mode fiber?
The diameter of a single mode core is 9µm. Both fiber types have a cladding diameter of 125 µm or microns.
Is single mode fiber better better than multimode?
Single-mode optical fiber holds advantages in terms of bandwidth and reach for longer distances, multimode optical fiber easily supports most distances required for enterprise and data center networks, at a cost significantly less than single-mode.
What is fiber limit speed?
The maximum speed of fiber optic cable can be dialed up to 100Gbps (gigabits per second). This compares to the maximum speed of copper cables, which reaches as high as 300Mbps (megabits per second) and, therefore, slower than fiber-optic technology.
Can single mode and multimode fibers be mixed in a network?
Mixing single mode and multimode fibers in a network is generally not recommended because of differences in core size and light propagation characteristics. Special equipment like mode conditioning patch cords may be required.
