Guide to Different Types of Coaxial Cables Leave a comment

Introduction

Coaxial cables are essential components of telecommunications and electronics, designed to efficiently transport high-frequency signals while reducing interference. They are classified into several types, each with a focus on a unique application or environment.
In this guide we will discover about the different types of coaxial cables with their uses that will help you choose the best according to your need.

What are Coaxial cables?

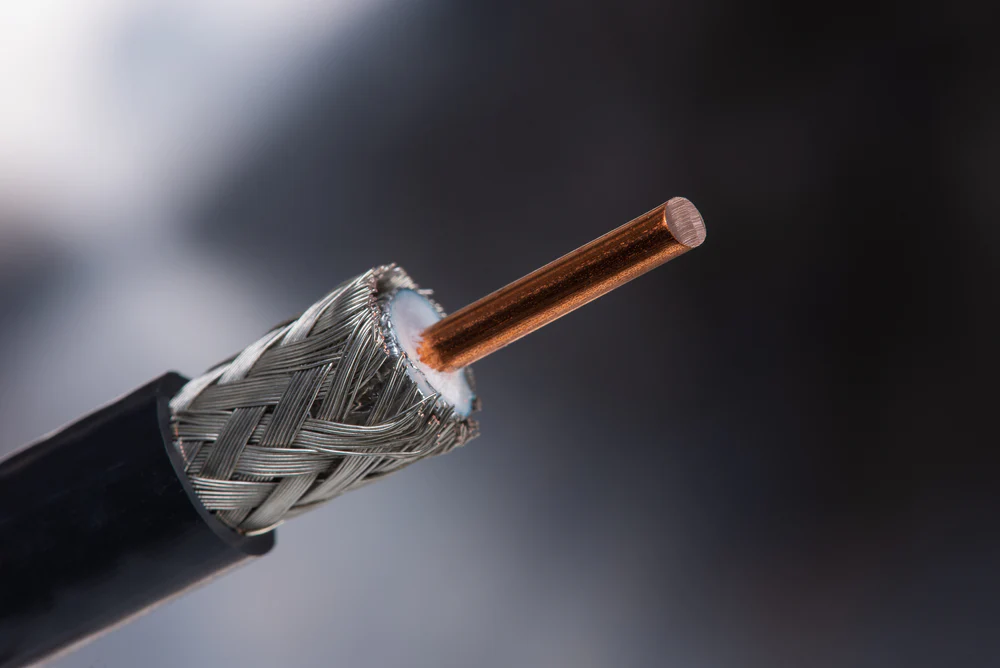

Coaxial cables are essential components in modern telecommunications and electronics, characterized by their cylindrical shape and layered construction. An inner conductor, usually composed of copper or aluminum, sits at the center of a coaxial cable and transmits the electrical signal.

High-frequency signals can be effectively sent over long distances with little attenuation using coaxial wires. They are extensively utilized in satellite communications, cable television (CATV) systems, high-speed internet connections, and data transmission in the telecommunications industry.

Different Types of Coaxial Cables

RF Cable

• Definition:
  RF cable is often associated with coaxial cable and is a standard cable for connecting to a signal input port or RF input device.
• Uses:
  RF cable is ideal for home, short-distance audio/video components, or low-traffic applications. It is not intended for long-distance transmission.

RG-6

• Applications:
  Widely used in cable TV and satellite installations.
• Features:
  With an impedance of 75 ohms, RG-6 cable is durable and reliable. It effectively transmits signals over long distances with minimal data loss, making it suitable for high-bandwidth applications.

RG-59

• Applications:
  Often used in cable TV installations.
• Features:
  RG-59 cable is ideal for short distance transmission and has an impedance of 75 ohms. It is reliable for video transmission, but signal loss may occur over long distances, making it ideal for CCTV, security recording, control room monitors, and recording studios.

RG-62

• Main Applications:
  Designed for transmitting high frequency electromagnetic signals.
• Features:
  RG-62 cable is ideal for long distance data transmission with high signal reliability. The 93 ohm impedance minimizes signal distortion, making it useful for car antennas and satellite applications.

RG-8

• Applications:
  Used in applications requiring high voltage handling and low loss over long distances.
• Features:
  RG-8 cable has an impedance of 50 ohms and is commonly used in amateur radio and other high power transmission equipment. Its low loss tolerance makes it essential in the communications and broadcasting industries.

RG-11

Applications:
Ideal for long distance, high bandwidth data applications.
Features:
RG-11 cable is thicker than other coaxial cables, minimizing data loss and is widely used in long distance communications, backbone networks and  video surveillance systems. It offers higher transmission capacity than RG-6 or RG-59 cables.

RG-213

• Main Applications:
  Known for low loss and high power capacity.
• Features:
  Similar to RG-8 but with solid insulation instead of foam, RG-213 cable has an impedance of 50 ohms and provides low loss transmission. They are commonly used for CB radios, Internet connections and mobile uplink systems.

LMR Cable (Land Mobile Radio)

• Applications:
  Designed for wireless communications.
• Features:
  LMR cable is known for its flexibility, making it ideal for tightly packed or complex systems such as communication networks, radio systems, and cellular networks. It is available in both 50 ohm and 75 ohm impedance  and is considered flexible, durable, and reliable.

Twin Axial Cable

• Main Applications:
  Specialized for high-speed data transmission.
• Features:
  Twin axial cable is constructed with two inner conductors twisted together into a pair, allowing for high-speed transmission over short distances. They are ideal for complex computer systems and digital video development.

Triaxial Cables

• Applications:
  High capacity transmission over short distances.
• Features:
  Triaxial cables are similar to twinaxial cables, but with an additional third conductive layer, providing higher bandwidth. Ideal for videography, television production, and filmmaking

Some other Types of Coaxial cables includes:

Here are some of more types of coaxial cables in computer network:

1- Hard line Coaxial Cable

Hard line coaxial cables are durable and inflexible, and are commonly used in applications requiring minimum signal loss, such as long-distance transmissions and high-power RF (radio frequency) applications. These cables frequently include a solid outside conductor constructed of aluminum or copper, which provides great protection from external interference.
Applications:
Hard line coaxial cables are widely used in broadcast stations, satellite communications, and long-distance telecommunications networks.

2- Flexible coaxial cable

Flexible coaxial cables have a stranded outer conductor, which makes them more malleable and bendable than hard line cables. They are perfect for applications requiring the wire to be routed through tight places or around corners while maintaining signal integrity.
Applications:
Flexible coaxial cables are widely utilized in home television installations, surveillance systems, and short-distance data transfers.

3- Semi-rigid Coaxial Cable

Semi-rigid coaxial cables provide a compromise between the rigidity of hard line cables and the flexibility of their equivalents. They have a solid outer conductor that provides superior shielding and signal integrity than flexible cables while allowing for less bending and shaping during installation.
Applications:
Semi-rigid coaxial cables are widely utilized in military applications, aircraft, and high-frequency test equipment.

4- Formable coaxial cable

Formable coaxial cables are comparable to semi-rigid cables, except they are more flexible during installation. They have a solid exterior conductor that can be easily formed and bent by hand, eliminating the need for specialized tools.
Applications:
Formable coaxial cables are utilized in applications that need precision routing and easy installation, such as RF test labs, prototype development, and antenna systems.

5- Rigid coaxial cable

Rigid coaxial cables are distinguished by their totally solid design, which provides optimum shielding with little signal loss. They are most commonly utilized in applications that require extremely high-frequency transmissions and precise impedance control.
Applications:
Rigid coaxial cables have applications in microwave communications, radar systems, and medical equipment where signal quality is critical.

How to Choose Coaxial Cable?

Coaxial cables are commonly available in 50 ohm or 75 ohm impedance variants. To reduce signal loss and reflections, ensure that the cable’s impedance matches the requirements of your equipment and system.

Consider the application for best type of coaxial cable to be utilized. Telecommunications, satellite communications, CCTV systems, and computer networks, for example, may necessitate the use of several types of coaxial cables designed to meet specific requirements such as flexibility, shielding, and transmission distance.

Flexible cables are easier to bend and manipulate in compact places, whereas rigid cables provide superior shielding and are ideal for permanent installations.

Higher shielding (such as double or triple shielding in triaxial cables) gives superior protection against electromagnetic interference (EMI), which is crucial in environments with high interference levels.

See Different types of computer cables

Conclusion

Different types of coaxial cables are adaptable and necessary components in many industries, with a variety of configurations available to meet specific application requirements. Whether it’s the strong shielding of hard line cables for long-distance communications or the versatility of formable cables for simple installation, each type of coaxial cable is critical to guaranteeing reliable signal transmission and signal integrity. Understanding the features and applications of various types of coaxial cable aids in picking the best cable for optimum performance in any particular application.
