In telecommunications and networking, the desire for quicker, more reliable data transfer has resulted in the extensive use of fiber optic technology. Fiber optic connectors are the hidden heroes of this technology, allowing for smooth communication over long distances. In this article, we will have brief insights into Fiber Connector Types LC SC ST and what are the differences?

ST, SC, and LC connections stand out among the many alternatives available, each with its capabilities and uses.

In this detailed guide, I will explain the ST, SC, and LC fiber connectors, their features, and their applications.

These connectors, which are sometimes disregarded, play a critical role in determining the efficiency and dependability of modern communication networks.

What are Fiber Connectors?

Fiber connectors are critical components in fiber optic communication systems that allow optical fibers to be connected and aligned for data transmission. These connections are essential for efficient and dependable data transfer across various applications, including telecommunications networks, data centers, cable television systems, etc.

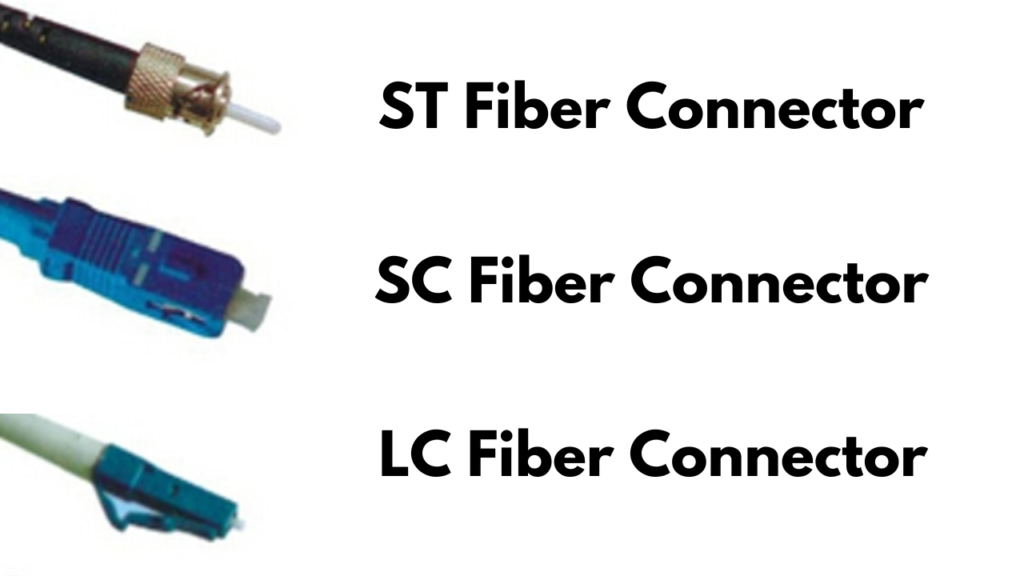

Fiber Connector Types LC SC ST

1-ST Fiber Connector

The ST (Straight Tip) fiber connector was one of the first to be widely utilized in fiber optic networking cables. Its straightforward design and solid construction make it a dependable choice for various applications. The ST connector uses a bayonet-style coupling mechanism to ensure quick and secure connections. Its cylindrical ferrule, often ceramic, accurately centers the fiber, reducing signal loss and ensuring peak performance.

Features of St connector

• A bayonet-style coupling mechanism provides quick and secure connections.
• Ceramic ferrule allows for accurate fiber alignment.
• Durable structure appropriate for harsh conditions.
• Suitable for both single and multimode fibers.

2-SC Fiber Connector

The SC (Subscriber or Standard Connector) fiber connector is another popular choice because of its superior performance and versatility. Its push-pull coupling mechanism allows for simple, efficient hookups without twisting or spinning. The SC connector’s square-shaped ferrule ensures accurate alignment, lowering insertion loss and improving signal integrity.

Features of SC Connector

• The push-pull coupler allows for simple and quick installation.
• A square-shaped ferrule allows for accurate fiber alignment.
• Low insertion loss, high return loss.
• Compatible with single-mode and multimode fibers.

3- LC Fiber Connector

The LC (Lucent Connector or Little Connector) fiber connector is known for its small size and high-density layout, making it an excellent choice for space-constrained environments. The LC connector includes a latch mechanism that ensures secure connections while reducing the possibility of accidental disengagement. Its ceramic ferrule ensures exceptional alignment accuracy, resulting in little insertion loss and consistent performance.

Features of LC Connector

• Compact design for high-density applications.
• A latch mechanism is used to ensure secure connections.
• Ceramic ferrule allows for accurate fiber alignment.
• Suitable for both single and multimode applications.

LC vs SC Fiber Connector

1- Size:

• LC connectors are useful for space-saving applications due to their compact size and high density.
• SC connectors are significantly larger but provide reliable performance and are appropriate for standard-density applications.

2- Connection:

• LC connectors use a latch mechanism to ensure safe connections.
• SC connectors use a push-pull coupling technique to facilitate installation and removal.

3- Alignment Accuracy:

• LC and SC connectors use ceramic ferrules for accurate fiber alignment, resulting in minimal insertion loss and excellent data transmission.

4- Applications:

• LC connectors are widely used in data centers, enterprise networks, and fiber-to-the-desk systems.
• SC connectors are used in telecommunication networks, cable television systems, and fiber-to-the-home (FTTH) installations.

LC vs ST Connector

1- Size:

• LC connectors are smaller and have higher density than ST, making them ideal for space-constrained installations.

2- Connection:

• LC connectors use a latch mechanism for secure connections, while ST connectors use a bayonet-style coupling for easy installation and removal.

3- Alignment Accuracy

• LC and ST connectors use ceramic ferrules for accurate fiber alignment, minimizing insertion loss and maintaining signal integrity.

4- Applications:

• LC connectors are commonly used in data centers, enterprise networks, and Fiber to the Desk (FTTD) deployments, where space efficiency is crucial.

• ST connectors are extensively used in industrial settings, telecommunications networks, and legacy systems where reliability and stability are critical.

ST vs SC Connectors

1- Connection:

• ST connectors use a bayonet-style coupling mechanism with a twist-lock for secure connections.
• SC connectors use a push-pull coupling mechanism, allowing rapid and easy installation without twisting or spinning.

2- Size:

• ST connectors are bigger than SC and may not be suitable for high-density installations with limited space.
• SC connectors have a smaller form factor, making them ideal for environments that require space efficiencies, such as data centers and telecommunications facilities.

3- Applications:

• ST connectors are extensively used in telecommunications infrastructure, industrial applications, and legacy systems that require reliable and stable connections.

• SC connectors are popular in applications that require variety, ease of installation, and high performance, such as telecommunication networks, cable television systems, and FTTH.

Conclusion

To summarize, ST, SC, and LC fiber connectors are critical components of modern fiber optic networks, each providing distinct characteristics and benefits. Whether you prefer durability, ease of installation, or space efficiency, there is a connector option to meet your individual requirements.

Understanding the properties and applications of these connectors allows you to make informed decisions that ensure optimal performance and reliability in your fiber optic system.

When choosing fiber connectors for your project, consider compatibility, performance requirements, and environmental circumstances.

With the correct connectors and rigorous maintenance, fiber optic technology can be harnessed to its full potential for flawless data transfer.
