What Are The Different Types of 3d Printers? Leave a comment

3D printing, a disruptive technology, has captivated industries worldwide with its capacity to bring computer creations to life in physical forms. Different Types of 3d Printers provide unparalleled versatility and inventiveness, from detailed prototypes to functioning end-use products.

From Fused Deposition Modeling (FDM) to Selective Laser Melting (SLM), we investigate the complexities of these technologies’ operation, strengths, and limits.

Whether you’re a professional looking to improve manufacturing processes or an enthusiast interested in learning more about additive manufacturing, this guide will help you understand the various types of 3D printers and their impact on design, prototyping, and production.

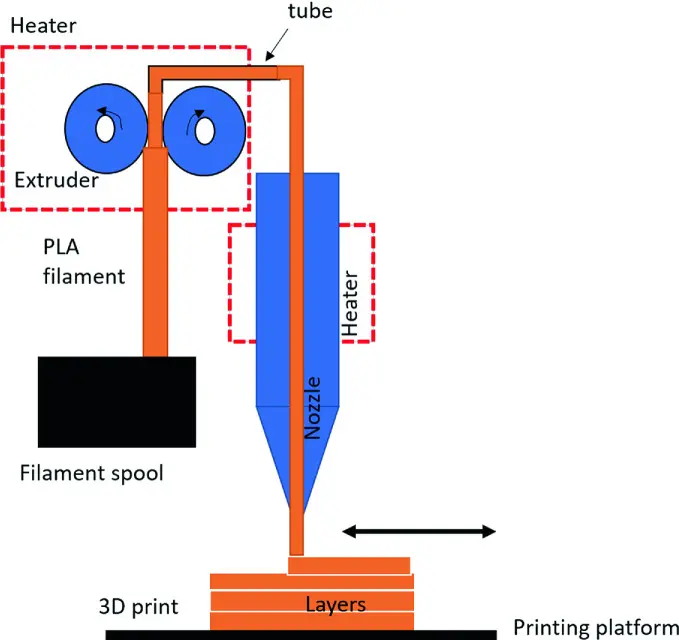

1. Fused Deposition Modelling (FDM)

Fused deposition modeling (FDM), also known as material extrusion additive manufacturing technology, uses polymers as raw materials (filaments).

How it Works:

Typically, the filament is heated to a molten state and extruded through the nozzle of a machine (3D printer). The nozzle head can move in three degrees of freedom (DoF) and deposit the extruded polymer onto the build plate according to G-code instructions. Two counter-rotating rollers are used to feed filament continuously fed to the extruder and machine nozzle. The material is applied layer by layer to the building board until the desired product shape and size is obtained.

Pros and Cons:

Pros	Cons
Low-cost	Lower resolution
widely available materials	noticeable layer lines
ideal for prototype and hobbyist applications	slower printing speeds than competing technologies.

Applications:

FDM printers are useful for prototyping, education, and generating functioning parts of modest complexity.

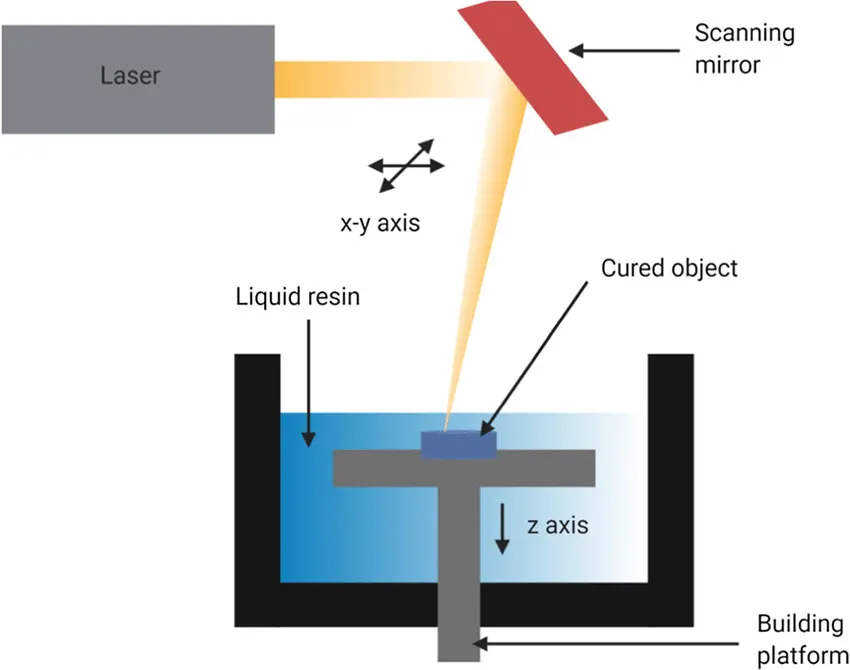

2. Stereolithography (SLA)

It works using a 3D printing technique called vat polymerization, where a material called photopolymer rubber is selectively recreated by a light source.

How it works:

This is 3D printing that measures its complexity and precision by sequentially transforming liquid photopolymer (a unique type of plastic) into strong 3D elements. The plastic is first heated to a semi-liquid structure that then solidifies on contact. The printer develops each of these layers using a bright laser aligned by X and Y filter mirrors. Just before the next step, the sharp edge of a coater also passes over the surface, ensuring that each thin layer of rubber is evenly distributed across the item.

Pros and Cons:

Pros	Cons
High resolution	Limited material alternatives
Clean surface finish	Post-processing is necessary for curing
Ideal for intricate models and small pieces.	Resin can be costly.

Applications:

SLA printers make high-resolution prototypes, jewelry, dental models, and detailed designs.

3. Selective Laser Sintering (SLS)

SLS printers employ a laser to fuse powdered materials, such as nylon or metal, into solid layers.

How it works:

Recrystallization (sintering) of the fine powder occurs immediately upon irradiation with a high-power laser beam. A scanning laser beam is controlled through a deflection system to build each layer. This deflection and control of the laser beam is determined by the corresponding cross section calculated from the prefabricated CAD model. The next layer is then built by applying and distributing the powder onto the previously treated layer. This cycle continues manufacturing the entire 3D part.

Pros and Cons:

Pros	Cons
There is no need for support structures	Expensive equipment
it can create intricate designs and works with various materials.	lower resolution than SLA

Applications:

SLS is used to create functioning prototypes, end-of-life parts, and unique products in industries such as automotive and aerospace.

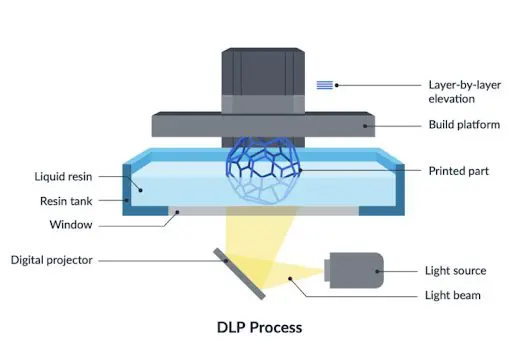

4. Digital Light Processing (DLP)

Like SLA machines use a laser that traces the layer, while DLP machines use a projected light source to cure the entire layer at once

How it works:

DLP 3D printers uses a digital light projector screen to project UV light onto photopolymer resin. The light is projected onto the desired layer shape of the 3D object, then let to be harden the resin in that area. This process is repeated layer by layer until the entire object is created.

Pros and Cons:

Pros	Cons
Quick printing	Limited material selections
Good resolution	Post-processing necessary
Cost-effective for small-scale production.	Lower accuracy than SLA.

Applications:

DLP printers manufacture dental appliances, jewelry, and consumer products.

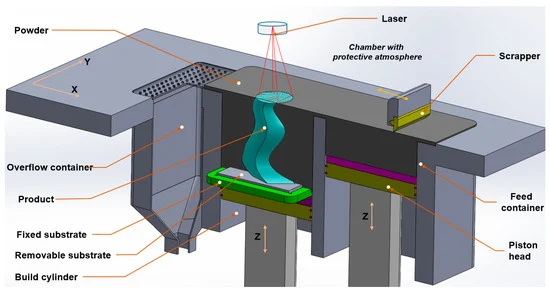

5. Selective Laser Melting (SLM)

SLM printers employ a powerful laser to melt and fuse metal particles into solid objects layer by layer.

How it works:

Similar to SLA, which uses UV lasers, SLM uses a high-power laser beam to form 3D parts. During the printing process, a laser beam melts various metal powders and bonds them together. When the laser beam hits a thin layer of material, the particles are selectively bonded or welded together. Once the print cycle is complete, the printer adds a new layer of powder material to the previous layer.

Pros and Cons:

Pros	Cons
High strength and endurance make it ideal for creating metal parts with complex geometries.	Include high equipment and material costs
Reduced Waste	A limited build size, and the need for specialist post-processing.
Shorter Lead Times

Applications:

SLM is utilized in the aerospace, medical implants, automotive, and tooling industries to manufacture metal components.

See OSSSinc Printer accessories and consumables

Conclusion

In conclusion, the field of 3D printing is diverse, with a wide range of technologies customized to specific demands and industries.

From the simple and adaptable Fused Deposition Modeling (FDM) to the precision-driven Stereolithography (SLA) and metal prowess of Selective Laser Melting (SLM), each approach has its own set of benefits and uses.

As technology advances in materials, accessibility, and integration with other technologies, the possibilities become limitless. Designers, engineers, and artists can use 3D printing to create complicated prototypes, functioning end-use parts, and beautiful masterpieces.
